SPC Innovator Kit Redefine Single-Cell Analysis by Developing Your Own Multi-Step Workflows

Learn More

Discover

The SPC Innovator Kit is designed for robust cell isolation into Semi-Permeable Capsules (SPCs). Once encapsulated, it enables seamless execution of multiple sample processing steps with simple pipetting, while maintaining compartmentalization of cells and nucleic acids.

Offering complete flexibility in molecular processing, the SPC Innovator Kit enables researchers to design and optimize high-throughput single-cell assays, tailored to their specific needs.

SPC INNOVATOR KIT (65 µm)

The most versatile SPC generation kit, designed to encapsulate a wide range of cell types. It also serves as a key component of the reagent kits for single-cell sequencing applications offered by Atrandi.

SPC INNOVATOR KIT (30 µm)

Designed for FACS applications, this kit features smaller capsules compatible with standard FACS nozzles. The reduced size also enables higher generation throughput, making it ideal for processing large numbers of single cells under certain cell size limitations.

Application Note

dsDNA Barcoding KIT

The dsDNA Barcoding Kit, an extension of the Innovator Kits, simplifies the development of custom single-cell sequencing workflows. It integrates effortlessly with upstream molecular biology workflows to distincly barcode amplified dsDNA, preserving single-cell resolution throughout library preparation and sequencing.

Download Brochure

Kit components

Consumables

Syringes & Safe-Needles
Collection Tubing
Disposable Hemocytometer

Chip

SPC Generation Chip

Reagents

Core Reagent
Shell Reagent
Photoinitiator
Sample Loading Oil
Capsule Stabilization Oil
Emulsion Breaker
Wash Additive
Release Reagent

Specifications

	Innovator Products
Catalog number	CKN-G52 CKN-G11 CKN-G55Q CKN-G67Q
Size	30 ± 5 µm 65 ± 5 µm 170 ± 30 µm 300 ± 30 µm
Generation Rate	~2300 Hz ~300 Hz ~40 Hz ~40 Hz
Sample type	Cells (up to 10 μm) Nucleic acids Particles Cells (up to 30 μm) Nucleic acids Particles Cells (up to 60 μm) Nucleic acids Particles Cells (up to 100 μm) Nucleic acids Particles Spheroids
Compatible with FACS	Yes Large nozzles only (200 μm) No No
Retention / Permeability	>200bp double-stranded DNA >500bp single-stranded DNA & RNA
Sufficient for	6 runs 6 runs 3-6 runs 3-6 runs
Shipping conditions	Ambient
Storage	4 °C
Intended use	Research Use Only

Innovator Products

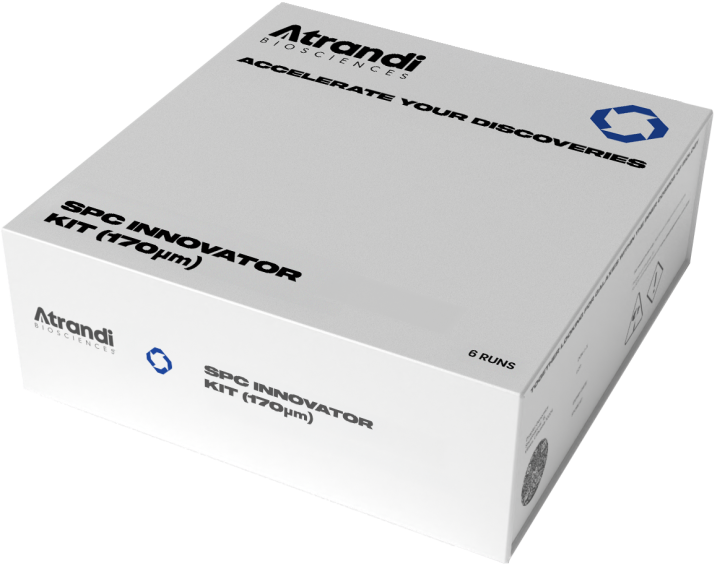

SPC Innovator Kit (170 µm)

Now available as an Innovator Product, the SPC Innovator Kit 170 μm is ideal for cultivation experiments. Its larger SPCs enable extended cell growth, supporting the formation of complex cellular structures, such as spheroids.

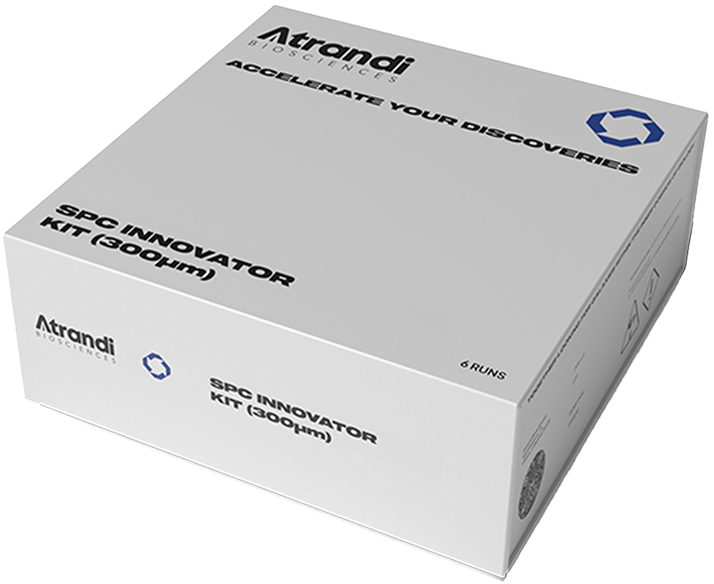

SPC Innovator Kit (300 µm)

Atrandi is actively developing the SPC Innovator Kit 300 μm, designed to support even larger and more complex cellular structures, including spheroids and organoids.
